Question: Explain Hooke’s law with the necessary figure and derive experimental verification of Hooke’s law.

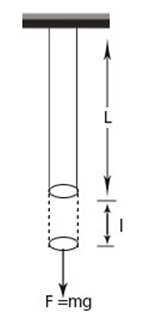

Experimental verification of Hooke’s law: The experimental set for the verification of Hooke’s law can be shown in the figure above. It consists of a vertical spring whose upper end be fixed with rigid support and its lower end be connected with weight. It also consists of a pointer (P) which slides on a fixed vertical scale to measure the extension of the spring.

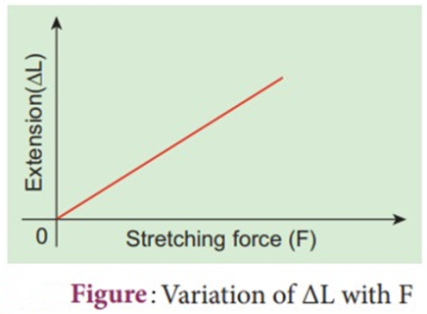

At first, let the initial reading of a pointer on a vertical scale be noted when no weight be suspended on a spring. After this let some weight be placed on spring then final reading of a pointer on the vertical scale be noted. So that the difference between the final and initial reading of a pointer represents an extension of the spring. Let this process be repeated for increasing different weight on this we plot a graph between the extension of the spring along the y-axis and weight suspended on a spring along the x-axis. As shown in the figure below in which a straight line be obtained passing through origin which verifies the Hooke’s law.
